Topographical Maps

• What is the largest map you can fabricate?  There is no limit to the size of a map we can build.  There are practical limits that will impact shipping and installation, but we work closely with our customers on these special requirements.

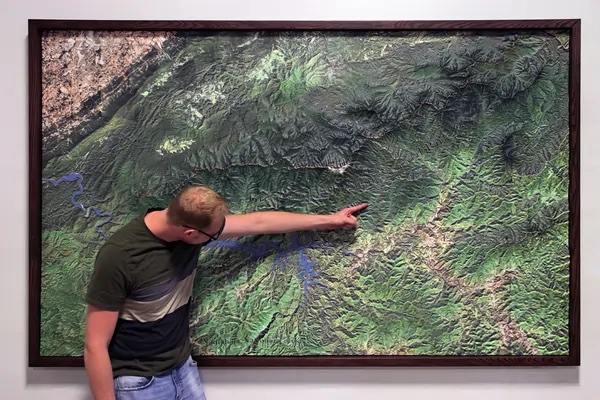

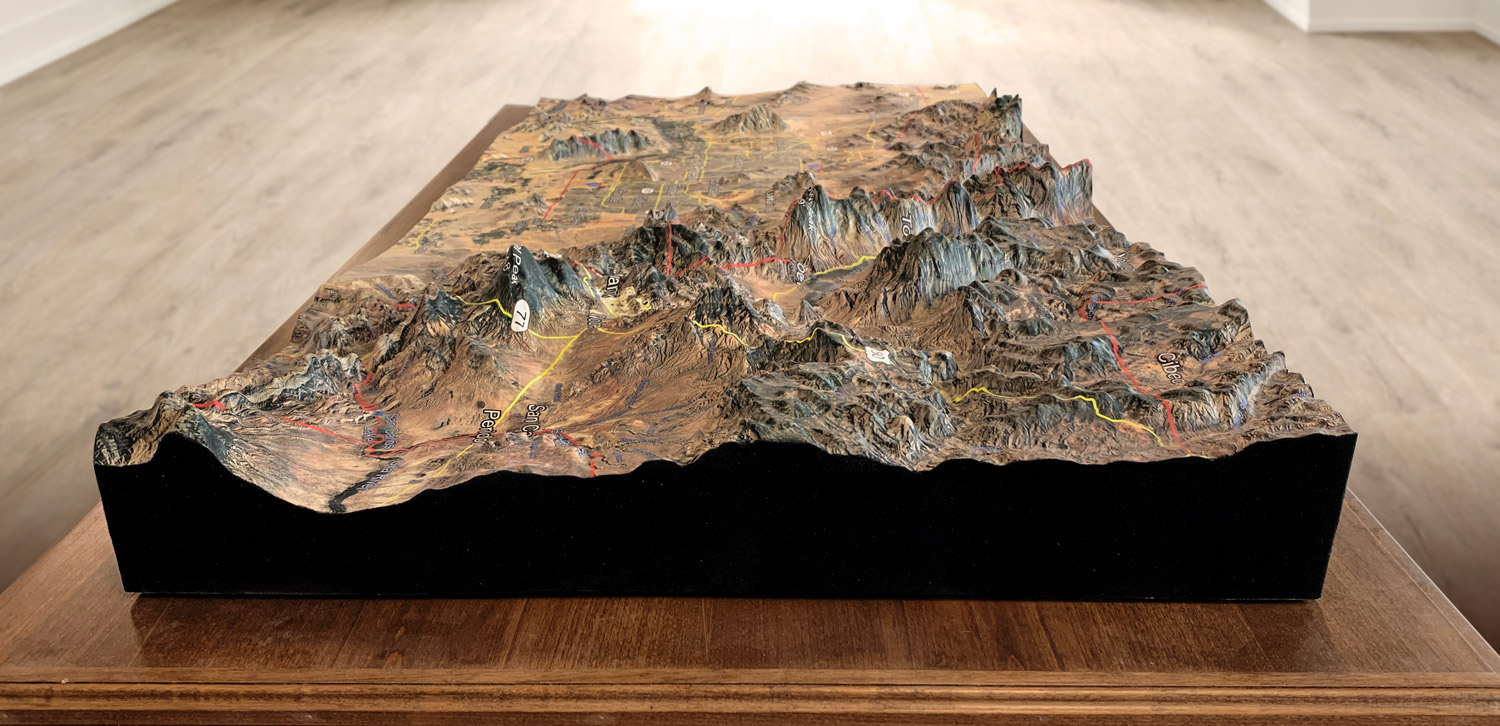

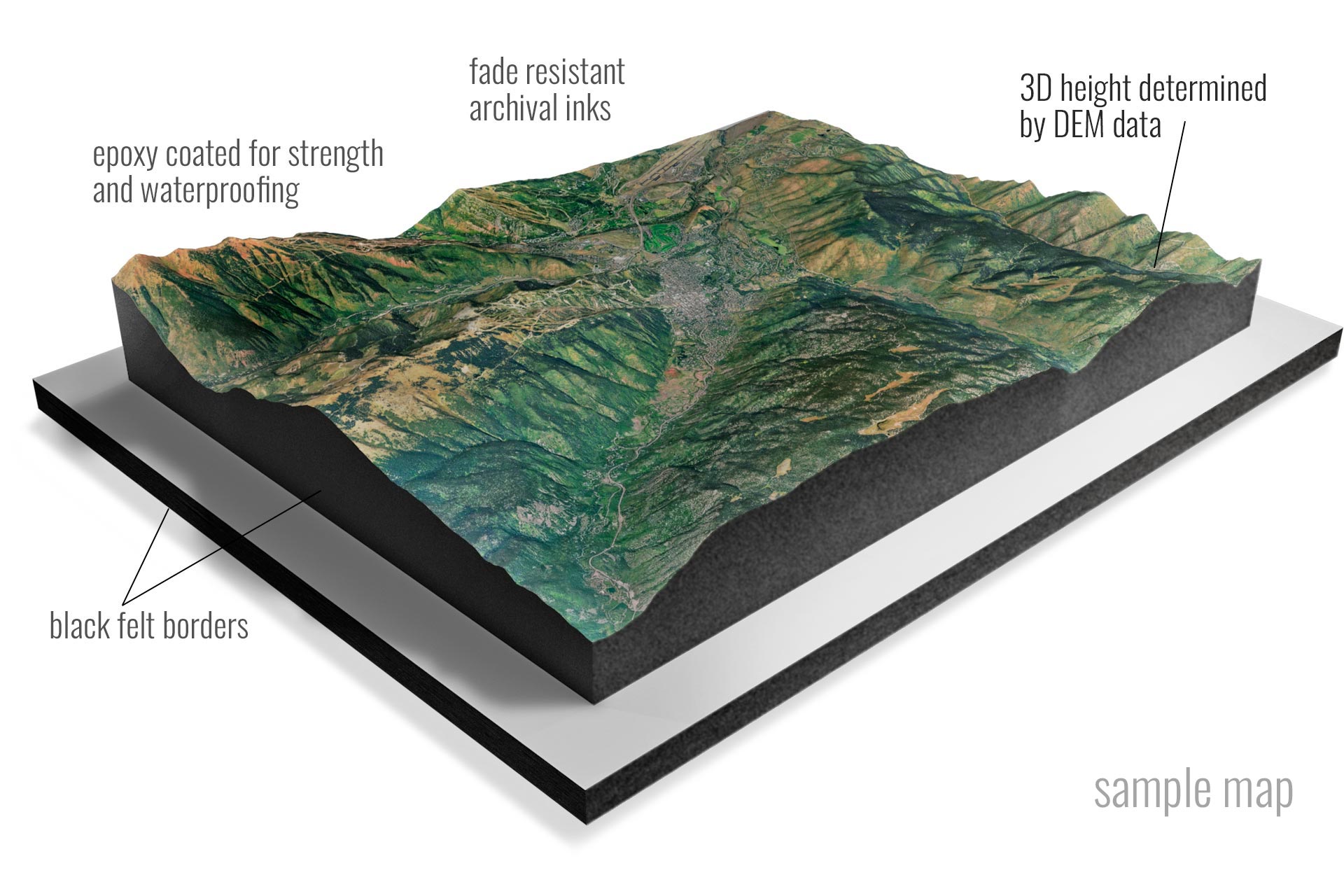

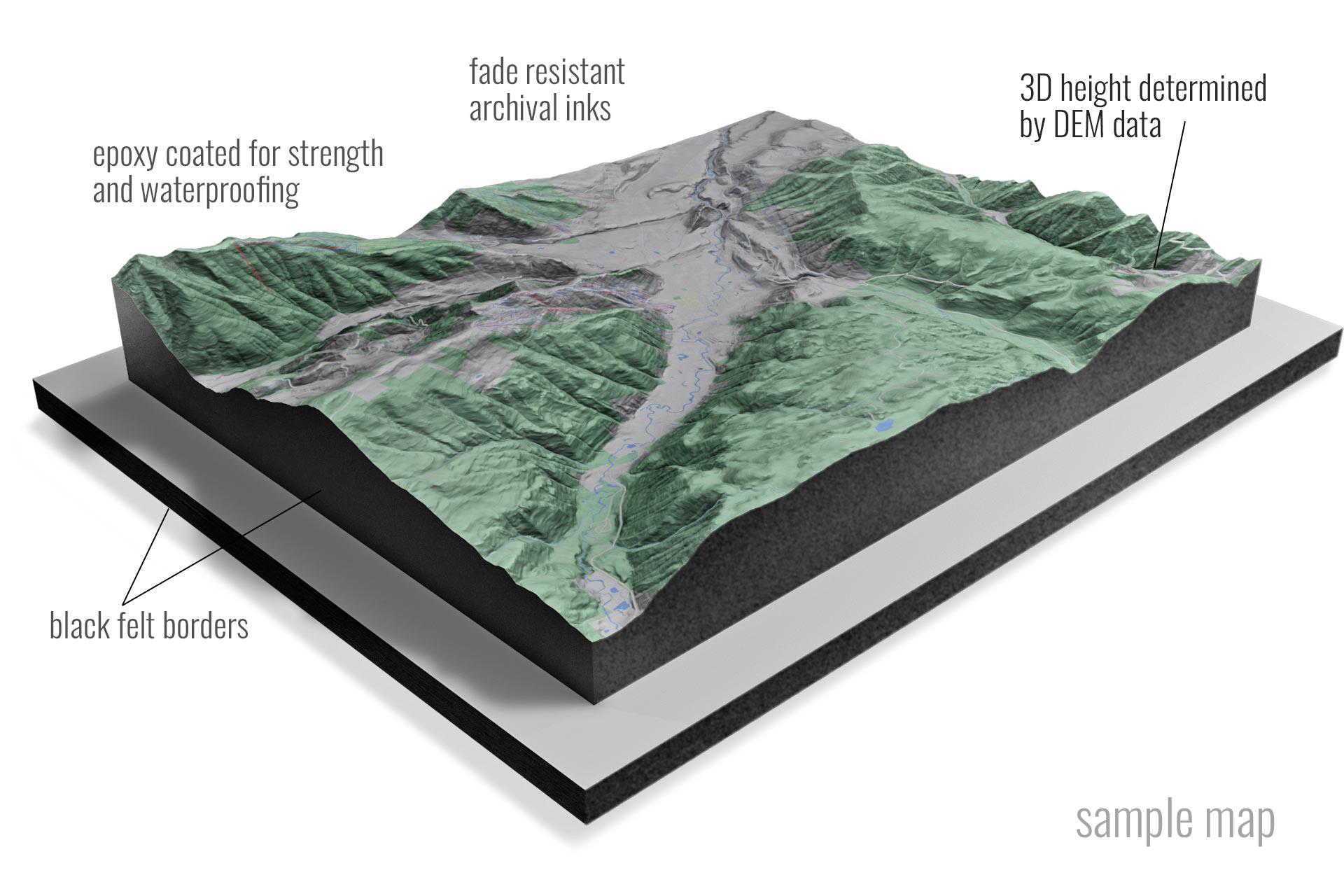

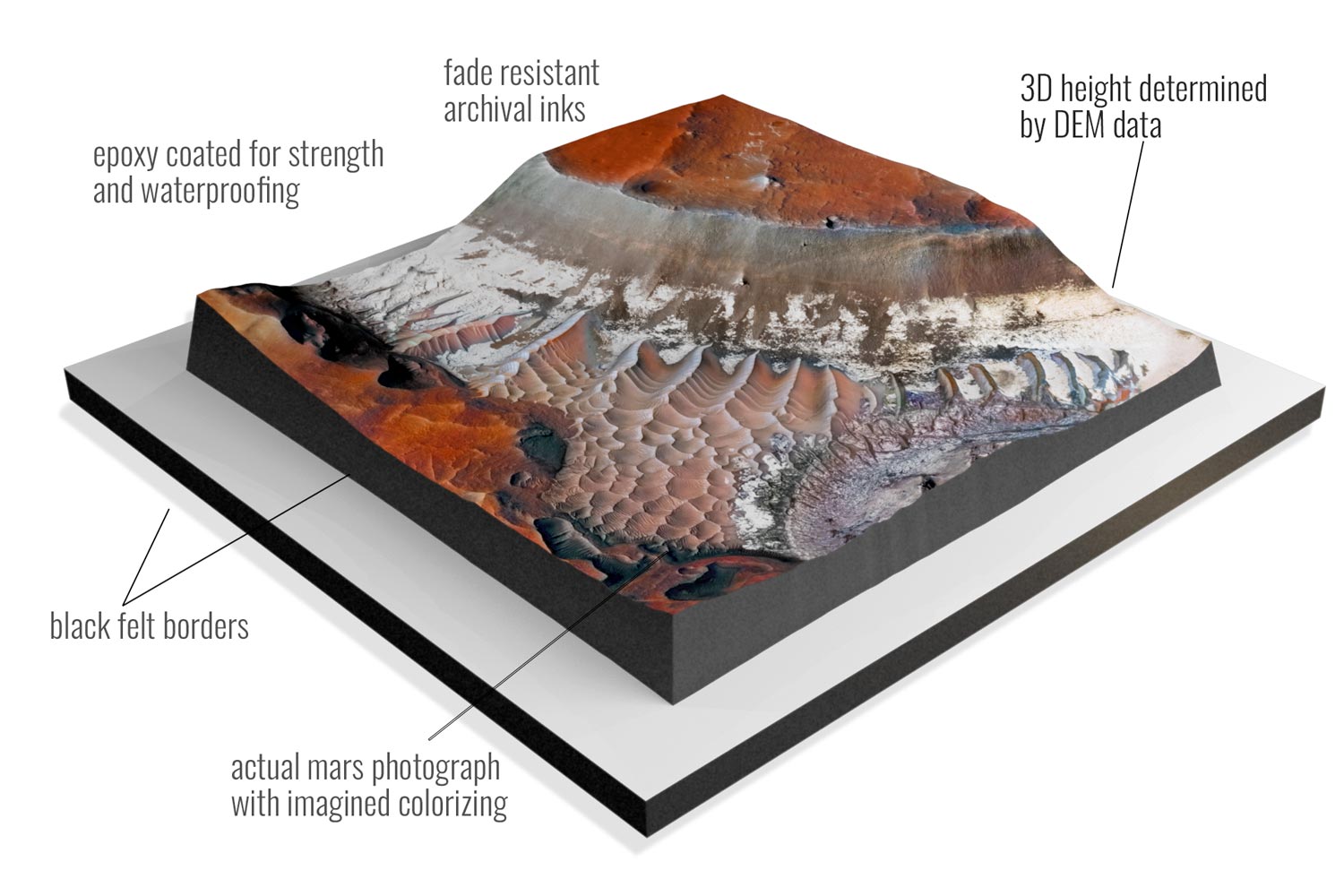

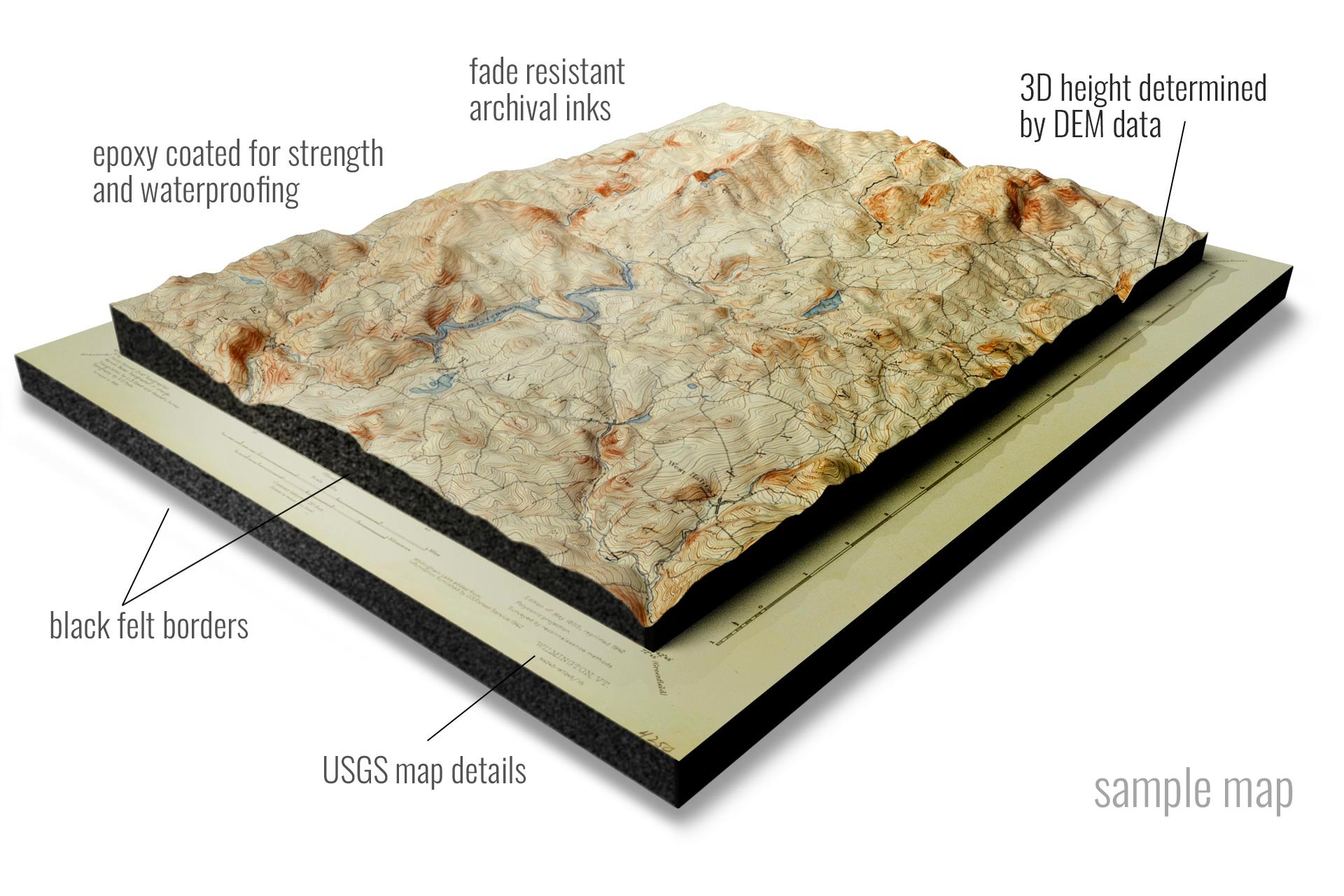

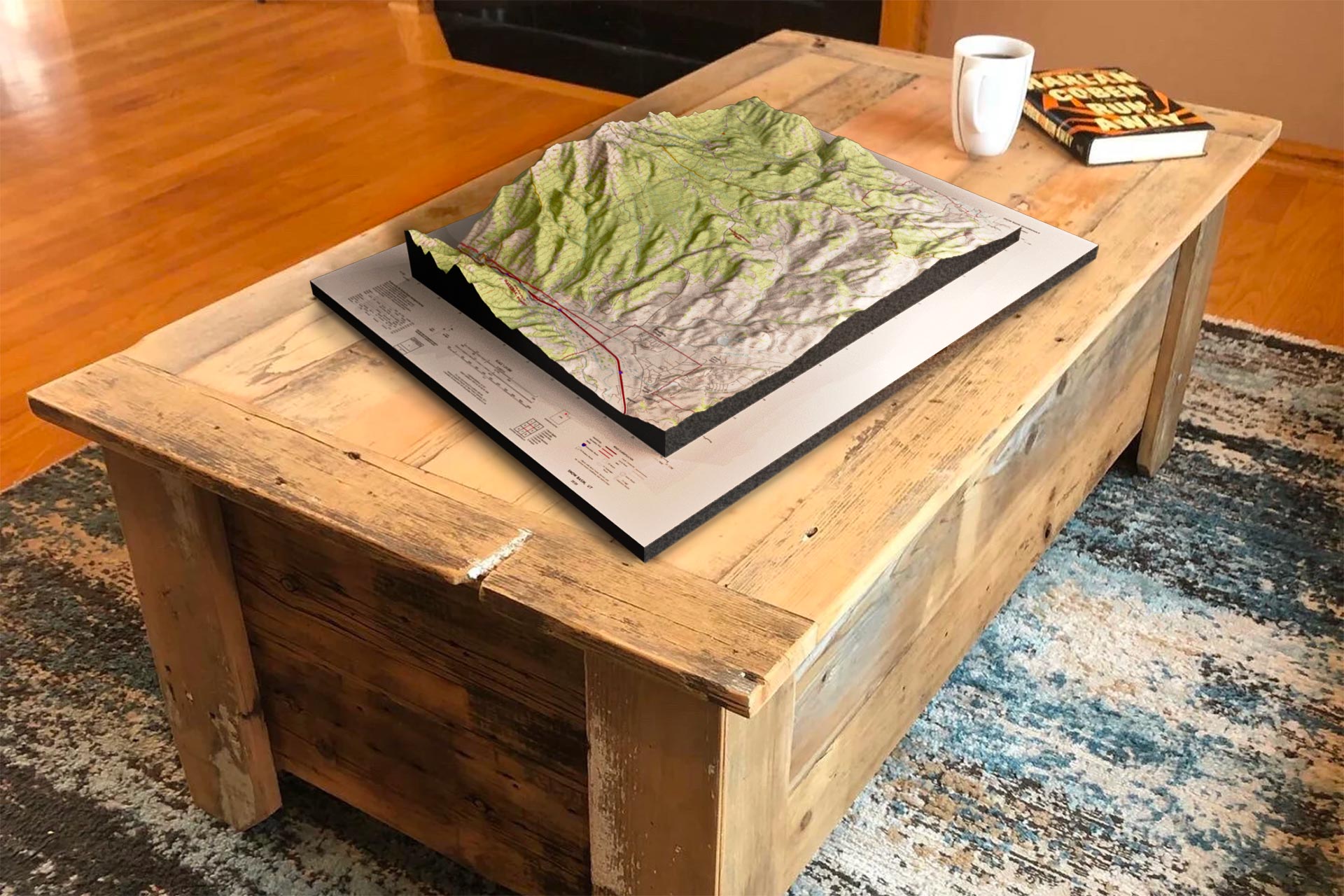

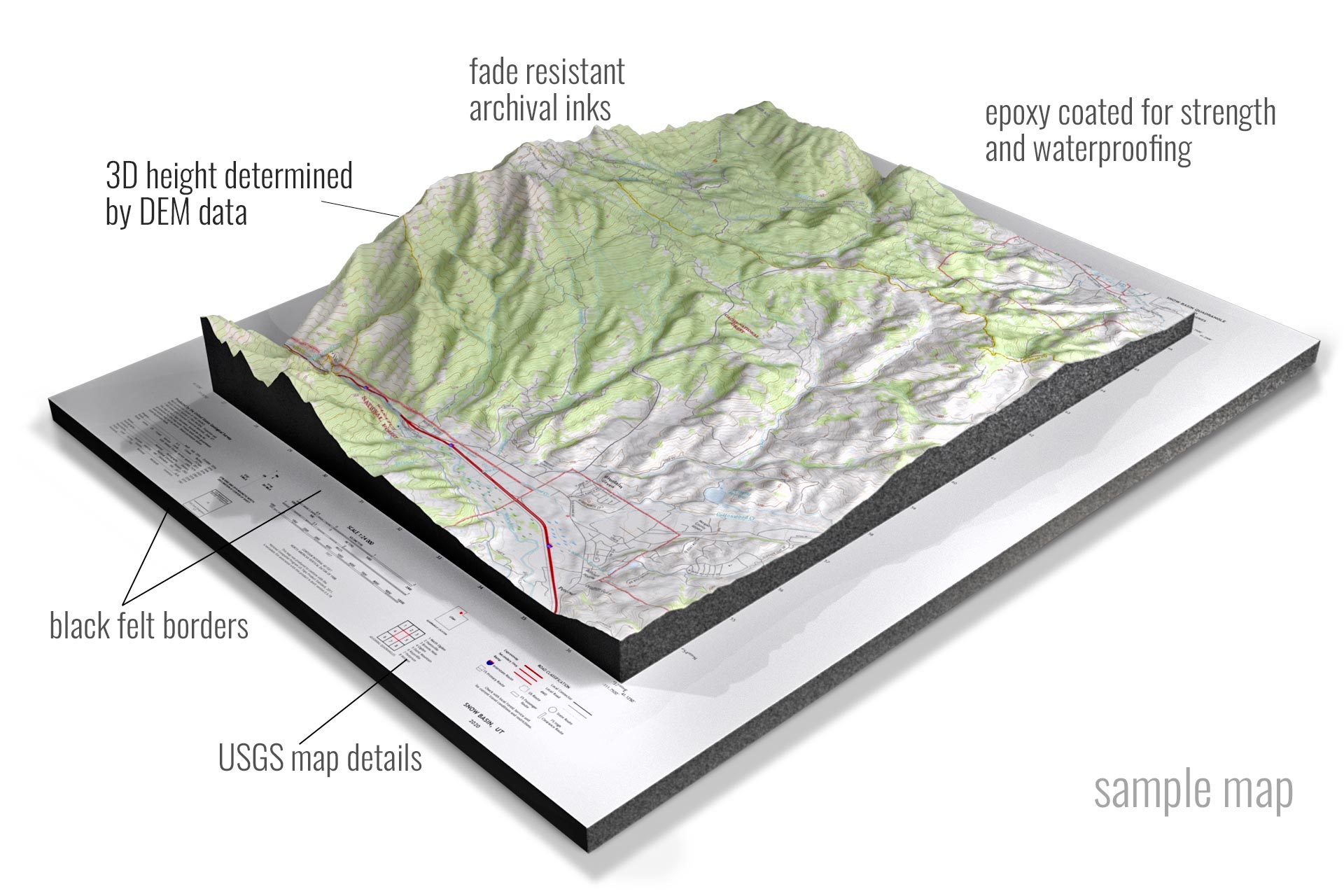

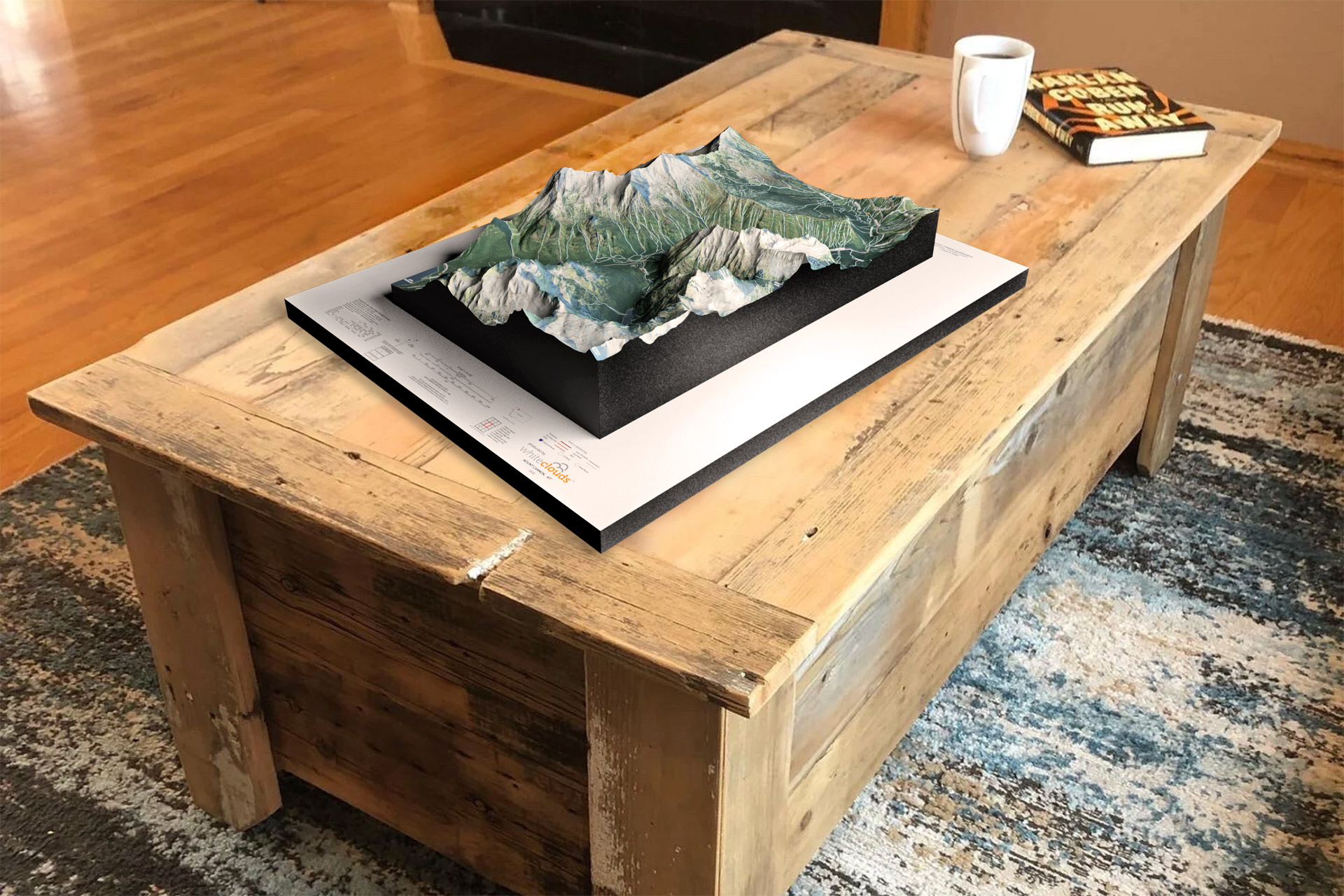

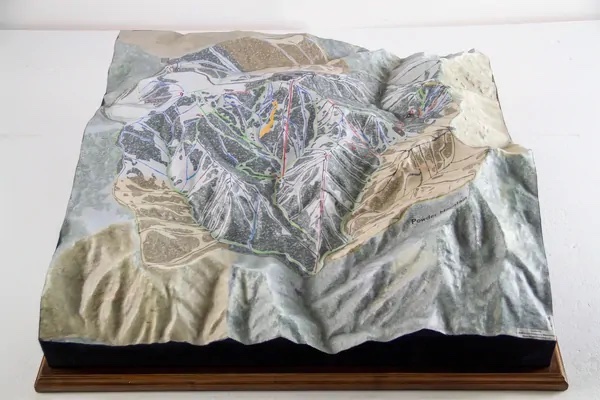

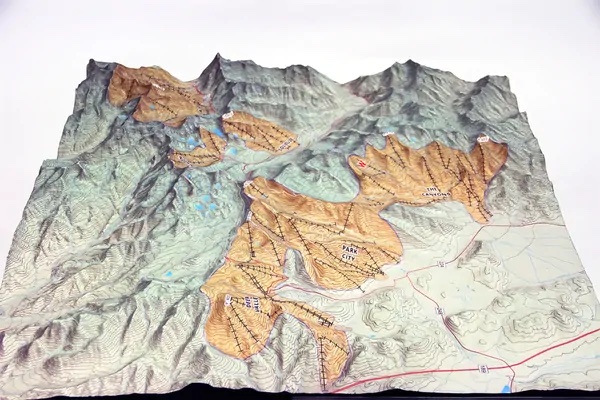

• What type of 3D maps can you fabricate?  All types.  Satellite Maps, Terrain Maps, Topographical Maps, Raised Relief Maps, USGS Maps, Contour Maps, and many more.
• Can you fabricate with different technologies and materials?  Yes.  Our most common fabrication technology is 3D Printing, but we can also build 3D Maps with CNC Cutting, 3D Foam, Molding/Casting, Thermoforming, and Sculpting.
• What materials can you 3D print in?  We match the correct material and fabrication process to your requirements in terms of presentation, size, and transportability. We can 3D print in PLA, FDM, Full-Color Sandstone, UV-cured resin, plastic, rubber-like, acrylic, and nylon – as well as combining multiple technologies.
• Can you sign a Non-disclosure Agreement that you supply?  Yes.
• How long will it take to create my map? That depends on the design and size of the map. A more complex or detailed map will take longer than a simple map, we can’t really say exactly how long it will take until we have the chance to understand what type of map you want fabricated.  Generally, smaller standard maps can be a couple of weeks and large museum exhibition maps can be 6 months.
• What do you need from me to start the map fabrication?  Boundaries are a good place to start.  Determining map styles, sizes, height (may be exaggerated), and cabinetry needs are all part of the process. Special design features can also be added.
• Can you add homes, buildings, swimming pools, arbors, hardscaping features, etc.?  Yes. We can 3D print many of these items and include them in our maps.  We refer to these more complex maps as architectural dioramas.
• What is a topography map?  A topographic map, also known as a contour map, is a type of map that represents the physical features and terrain of a particular area using contour lines to show changes in elevation.  These maps show the shape of the land, including mountains, valleys, ridges, and other features, as well as bodies of water, vegetation, and man-made structures.  Topographic maps are typically used for outdoor activities such as hiking, camping, and mountain biking, as well as for scientific purposes such as geology, geography, and environmental studies.  They are also useful for land-use planning, urban development, and natural resource management.  Topographic maps are created using specialized surveying techniques, including aerial photography, satellite imagery, and ground surveys, and are available in a variety of scales, from small-scale regional maps to large-scale detailed maps of specific areas.

• How do I read a topographic map?  Reading a topographic map can be intimidating at first, but it becomes easier with practice.  Here are some steps to help you read a topographic map:

  1. Understand the legend:  The legend is the key to the symbols and colors on the map.  It explains what the various symbols and colors represent, such as contour lines, water bodies, and vegetation.

  2. Look at the contour lines:  Contour lines are the most important feature on a topographic map.  They represent changes in elevation and help you visualize the three-dimensional shape of the land.  Each contour line represents a specific elevation and is usually labeled with the elevation in feet or meters.

  3. Determine the direction of the slope:  The direction of the slope is indicated by the shape and spacing of the contour lines. If the contour lines are close together, the slope is steep, and if they are far apart, the slope is gradual.  The contour lines that form a “V” shape point uphill, and the contour lines that form a “U” shape point downhill.

  4. Locate water bodies and vegetation:  Water bodies such as rivers, lakes, and streams are usually shown in blue, while vegetation such as forests and grasslands are shown in green.

  5. Identify man-made features:  Man-made features such as roads, buildings, and power lines are usually shown in black or brown.

  6. Use the scale to estimate distances:  The scale on the map tells you how to convert map distance to real-world distance.  This can be useful for estimating how far you need to travel to reach a particular feature on the map.

  By following these steps and practicing with different topographic maps, you can become more confident in your ability to read and interpret topographic maps.

• How are contour lines used on a topographical map?  Contour lines are used to show the elevation and shape of the land on a topographical map.  They connect points of equal elevation and help the reader visualize the three-dimensional shape of the terrain.
• What is the scale of a topographical map?  The scale of a topographical map indicates the ratio between the distance on the map and the corresponding distance on the ground.  For example, a map with a scale of 1:50,000 means that one unit of distance on the map (such as an inch or centimeter) represents 50,000 units of distance on the ground (such as feet or meters).
• How can you determine the elevation of a point on a topographical map?  Locate the point on the map and then find the contour line that passes through that point.  The elevation of the point is equal to the elevation of the contour line plus a fraction of the distance between the contour lines.
• What other information can be found on a topographical map?  In addition to contour lines and elevation information, topographical maps can also include symbols and labels for features such as roads, buildings, and landmarks.  They may also include information about vegetation, land use, and other aspects of the natural and built environment.
• What does a topographic map show?  A topographic map shows the physical features and terrain of a geographic area.  These maps use contour lines to represent changes in elevation, showing the heights and depths of mountains, valleys, and other landforms. Additionally, topographic maps may include other information such as bodies of water, roads, and man-made structures.  These maps are commonly used in outdoor activities such as hiking and camping, as well as in scientific research and urban planning.

• What is a topographic map used for?  A topographic map is used to provide a detailed and accurate representation of the physical features and terrain of a geographic area. It is used by hikers, campers, and other outdoor enthusiasts to plan routes and navigate through unfamiliar terrain.  Topographic maps are also used in scientific research, such as geological surveys, environmental studies, and land management.  They can be used by engineers and urban planners to plan infrastructure projects and assess the impact of human development on the environment.  Additionally, topographic maps can be used for military and defense purposes to plan and execute operations in various terrain and landscape conditions.

• What is a contour interval on a topographic map?  A contour interval on a topographic map is the vertical distance between adjacent contour lines. Contour lines connect points of equal elevation, and the contour interval determines how much elevation change is represented by each contour line.  For example, a map with a contour interval of 10 feet means that every contour line represents a change in elevation of 10 feet.  A map with a smaller contour interval, such as 5 feet, will have more contour lines and provide a more detailed representation of the terrain.  Contour intervals are typically listed in the map’s legend and can vary depending on the scale and level of detail of the map.

• What is a topographic map used for?  A topographic map is used to provide a detailed and accurate representation of the physical features and terrain of a geographic area. It is used by hikers, campers, and other outdoor enthusiasts to plan routes and navigate through unfamiliar terrain.  Topographic maps are also used in scientific research, such as geological surveys, environmental studies, and land management.  They can be used by engineers and urban planners to plan infrastructure projects and assess the impact of human development on the environment.  Additionally, topographic maps can be used for military and defense purposes to plan and execute operations in various terrain and landscape conditions.

• How is elevation shown on a topographic map?  Elevation is shown on a topographic map using contour lines. Contour lines are lines that connect points of equal elevation above sea level.  Each contour line on the map represents a specific elevation, and the distance between adjacent contour lines represents the change in elevation.  Typically, contour lines are labeled with their corresponding elevation in feet or meters.  The contour lines are often drawn in brown color and are spaced at regular intervals depending on the map’s scale and level of detail.  The closer the contour lines are to each other, the steeper the slope or terrain of the area represented on the map.

• How do I draw a topographic map?

  Drawing a topographic map requires specialized knowledge, skills, and tools.  It is typically done by cartographers, surveyors, and other professionals who have training and expertise in creating maps.

  Here are some general steps to draw a topographic map:

  1. Survey the area:  The first step is to survey the area to be mapped using various techniques such as field observations, aerial photography, satellite imagery, and LiDAR data.

  2. Determine the contour interval:  The contour interval should be chosen based on the scale of the map, the level of detail desired, and the terrain of the area being mapped.

  3. Draw the contour lines:  Using the survey data, draw the contour lines on the map. Each contour line represents a specific elevation, and they should be evenly spaced based on the chosen contour interval.

  4. Label the contour lines:  Label each contour line with its corresponding elevation in feet or meters.

  5. Add other features:  Add other features to the map such as bodies of water, roads, buildings, and vegetation.

  6. Finalize the map:  Once all features have been added, finalize the map by adding a title, a legend, and a scale bar.

  It’s important to note that drawing an accurate and detailed topographic map requires specialized training, equipment, and software. Therefore, it’s not a task that can be done easily by individuals without proper training and resources.

• What is one element a topographic map shows?  One element that a topographic map shows is the elevation of the terrain.  This is represented by contour lines that connect points of equal elevation, with each contour line indicating a specific elevation above sea level.  The contour lines are typically labeled with their corresponding elevation in feet or meters.  By analyzing the spacing and shape of the contour lines, users can determine the steepness, slope, and shape of the terrain, which is essential information for planning and navigating outdoor activities such as hiking and mountaineering.

• How do I calculate gradient on a topographic map?

  To calculate the gradient on a topographic map, you will need to determine the change in elevation between two points and the distance between those points.  Here are the steps to follow:

  1. Identify the two points on the map between which you want to calculate the gradient.  Locate these points on the map and note their elevations.

  2. Determine the change in elevation between the two points.  Subtract the elevation of the lower point from the elevation of the higher point.  For example, if one point is at an elevation of 500 feet and the other is at an elevation of 700 feet, the change in elevation would be 200 feet.

  3. Measure the distance between the two points.  You can use a ruler, a string, or a compass to measure the distance on the map.

  4. Divide the change in elevation by the distance between the two points.  This will give you the gradient or slope between the two points.  For example, if the change in elevation is 200 feet and the distance between the two points is 1 mile (5,280 feet), the gradient would be 200/5280 = 0.038 or 3.8%.

  Note that gradient can also be expressed as a ratio or a percentage.  In the example above, the gradient could also be expressed as 1:26 or 1 unit of rise for every 26 units of run.

• What is a contour line on a topographic map?  A contour line on a topographic map is a line that connects points of equal elevation above sea level.  Contour lines represent the shape and elevation of the terrain on the map.  Each contour line represents a specific elevation, and the spacing between contour lines indicates the slope and steepness of the terrain.  For example, closely spaced contour lines indicate a steep slope, while widely spaced contour lines indicate a gradual slope.

  Contour lines on a topographic map are typically drawn in brown or black and are labeled with their corresponding elevation in feet or meters.  They are often used by hikers, mountaineers, and other outdoor enthusiasts to plan routes and navigate through unfamiliar terrain.  Contour lines are an essential tool for understanding the shape and elevation of the land on a map, and they provide important information for safety and navigation in the outdoors.

• What data is shown on topographic maps?  Topographic maps show a variety of data related to the shape, elevation, and features of the land.  Here are some of the main types of data that are typically shown on topographic maps:

  1. Elevation:  Topographic maps show the elevation of the land using contour lines that connect points of equal elevation above sea level.  The contour lines are labeled with their corresponding elevation in feet or meters.

  2. Terrain features:  Topographic maps show various terrain features such as hills, valleys, ridges, and depressions. These features are represented by the shape and spacing of the contour lines.

  3. Bodies of water:  Topographic maps show rivers, lakes, ponds, and other bodies of water.

  4. Vegetation:  Topographic maps show the types of vegetation that are present in the area, such as forests, grasslands, and wetlands.

  5. Man-made features:  Topographic maps show man-made features such as roads, buildings, bridges, and trails.

  6. Geographic coordinates:  Topographic maps show the latitude and longitude coordinates of specific locations on the map.

  7. Magnetic declination:  Topographic maps show the difference between magnetic north and true north at a given location.  This is important information for compass navigation.

  Topographic maps are used for a variety of purposes, including outdoor recreation, geological and environmental research, land-use planning, and civil engineering.

Why are topographic maps useful?  Topographic maps are useful for a variety of purposes because they provide detailed information about the shape, elevation, and features of the land.  Here are some of the main reasons why topographic maps are useful:

1. Outdoor recreation:  Topographic maps are essential tools for hikers, backpackers, and other outdoor enthusiasts who need to plan routes and navigate through unfamiliar terrain.  The contour lines on the map provide valuable information about the slope and steepness of the land, which can help hikers plan safe and efficient routes.

2. Geology and environmental research:  Topographic maps are used by geologists and other researchers to study the structure and composition of the Earth’s crust.  The maps provide information about the elevation of the land, which is important for understanding geological processes such as erosion and plate tectonics.

3. Land-use planning:  Topographic maps are used by urban planners and other professionals to make decisions about land use and development.  The maps provide information about the shape and slope of the land, which can help planners determine the best uses for different areas.

4. Civil engineering:  Topographic maps are used by civil engineers to design roads, bridges, and other infrastructure projects.  The maps provide information about the elevation of the land and the location of waterways and other features, which is important for determining the best route for a road or bridge.

5. Emergency response:  Topographic maps are used by emergency responders such as firefighters and search and rescue teams to navigate through rugged and remote terrain.  The maps provide information about the elevation of the land and the location of features such as rivers and lakes, which can be critical in emergency situations.

• How do I get a topographic map of my property?  To get a topographic map of your property, you have a few options:

  1. Order from WhiteClouds:  Complete the “Get a Free Price Estimate” above, or contact us at 1-385-206-8700 or [email protected].

  2. Online mapping tools:  There are several websites that allow you to generate custom topographic maps of your property. One popular option is CalTopo, which allows you to create detailed topographic maps for free. To use CalTopo, simply enter your property address or location and customize the map as desired.

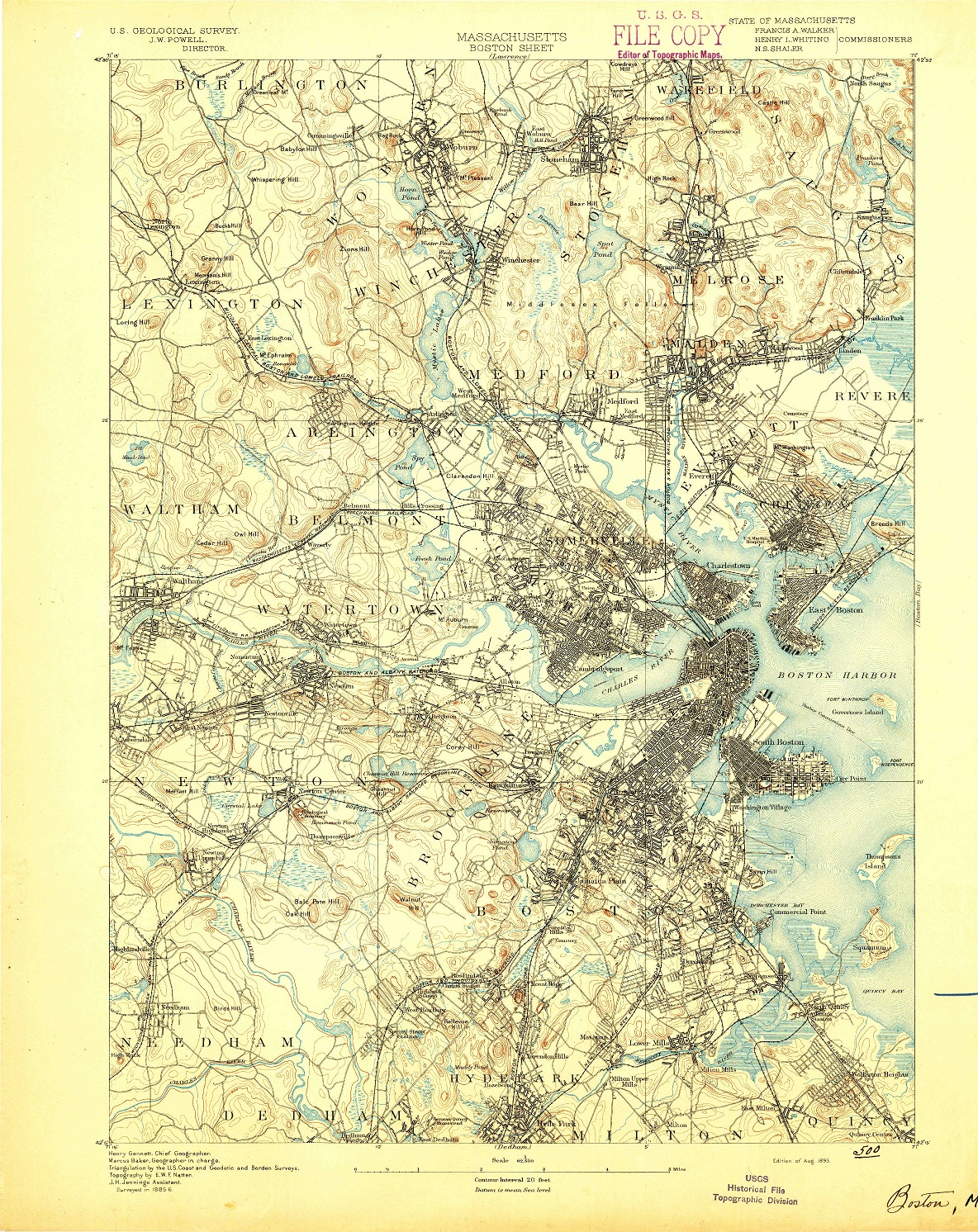

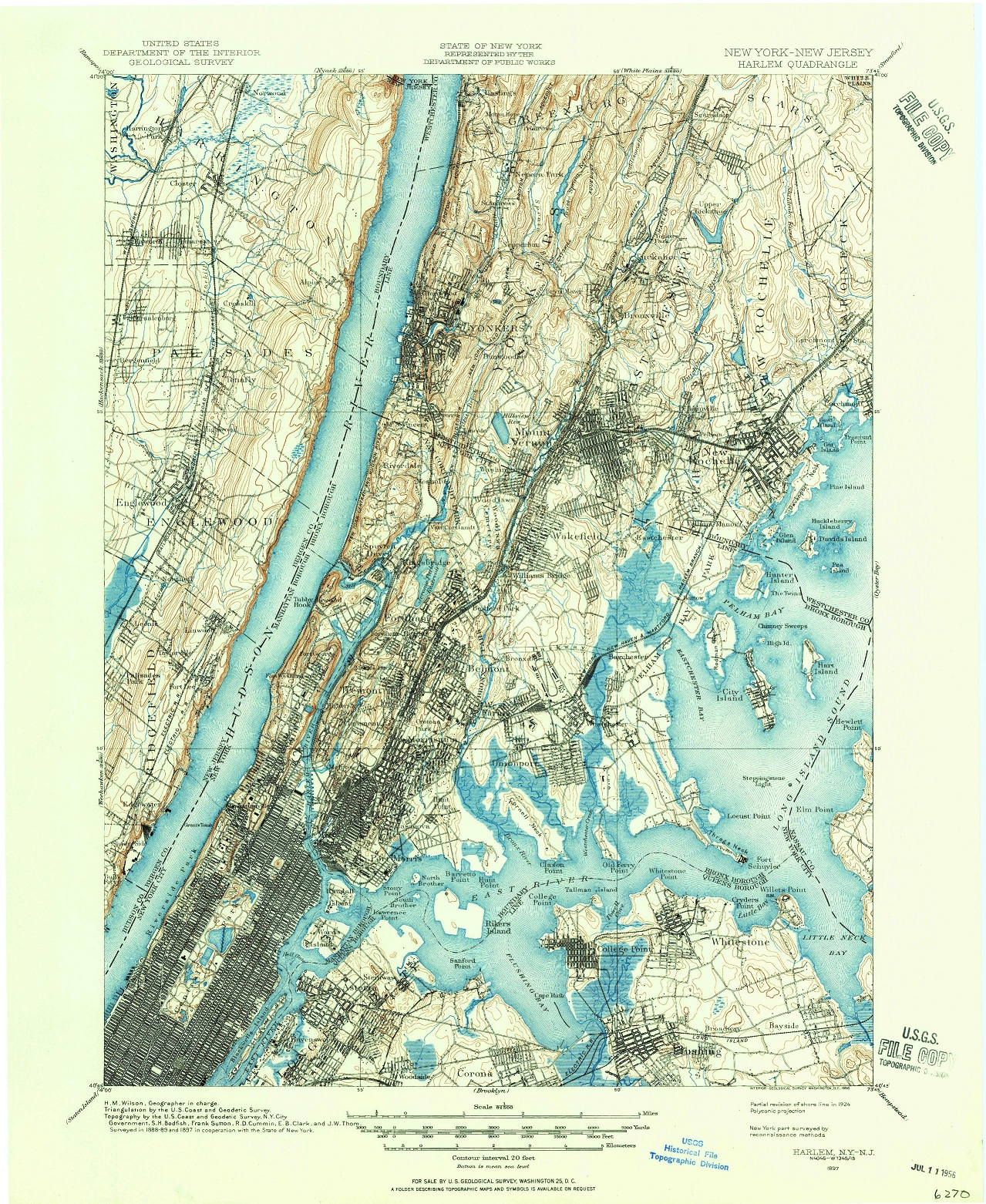

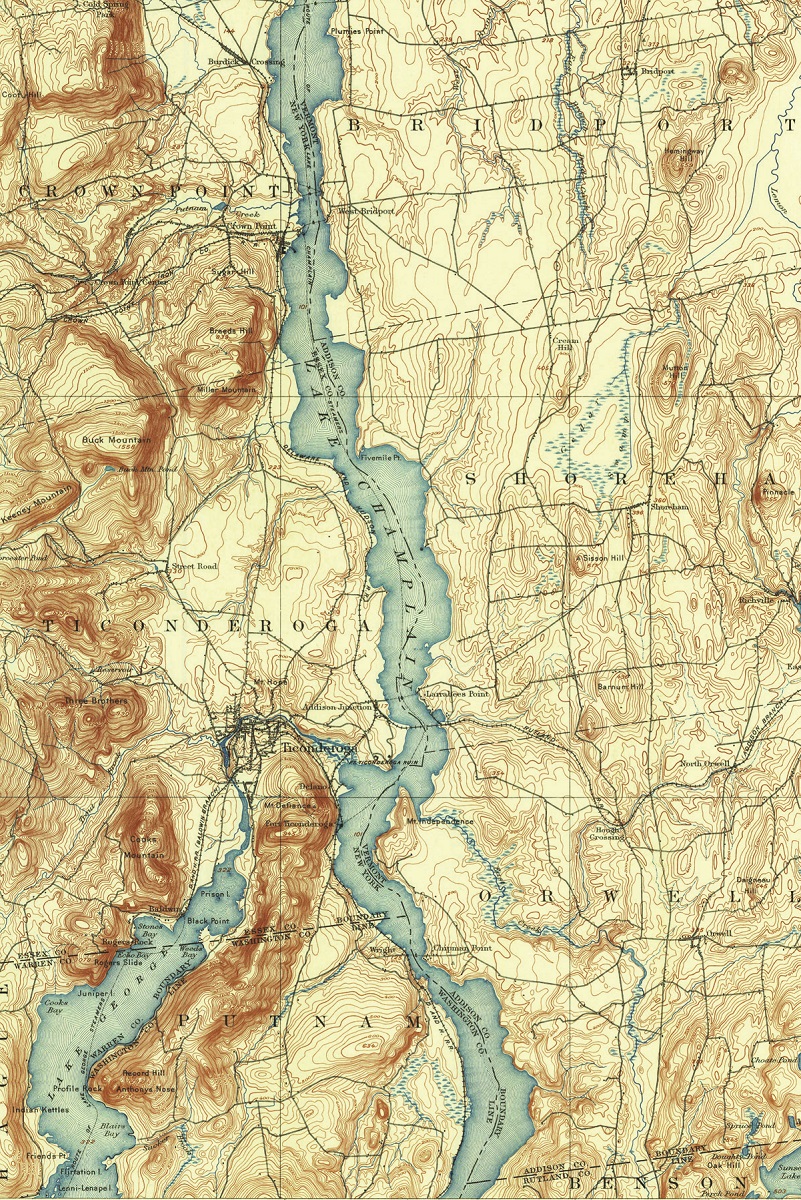

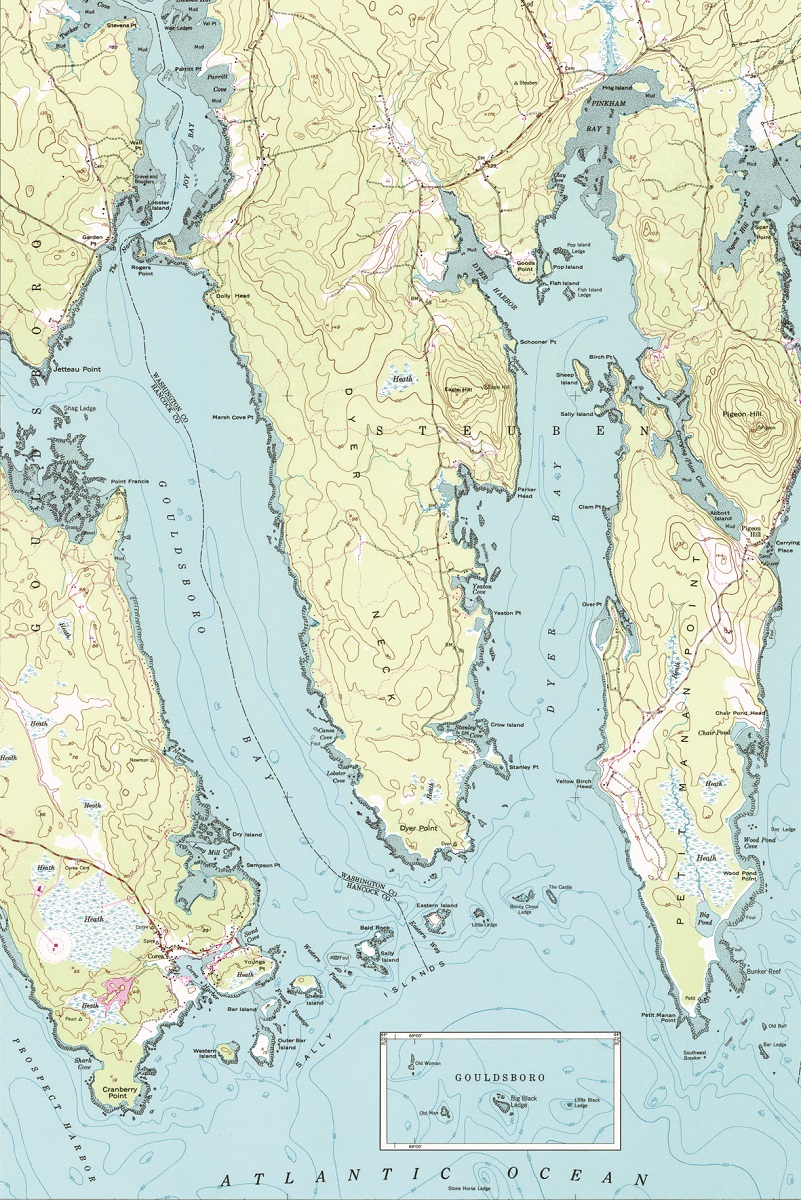

  3. USGS topographic maps: The United States Geological Survey (USGS) publishes detailed topographic maps of the United States. You can order a printed copy of a USGS topographic map of your property from the USGS Store.

  4. Local government agencies: Your local government may have topographic maps available for your property. Contact your county or city planning department to see if they have any maps available or can provide recommendations for where to find them.

  5. Surveyor: If you need a highly accurate topographic map for your property, you may want to hire a licensed surveyor. A surveyor can create a detailed map of your property using advanced surveying techniques and equipment.

  Before obtaining a topographic map of your property, be sure to research the various options available to determine which one is best for your needs and budget.

• How do I measure distance on a topographical map?  To measure distance on a topographic map, you will need a ruler or a piece of string and a scale. Here are the steps to follow:

  1. Locate the scale on the map:  The scale is usually located in the legend and tells you how to convert map distance to real-world distance.  For example, if the scale is 1:50,000, this means that 1 unit of measurement on the map (e.g. 1 inch) represents 50,000 units of measurement in the real world (e.g. 50,000 inches or about 0.79 miles).

  2. Determine the distance you want to measure:  Identify the two points on the map between which you want to measure distance.  You can use a ruler or a piece of string to mark the distance.

  3. Measure the distance on the map:  Place the ruler or string on the map and line it up with the two points you want to measure.  Use the scale to convert the map distance to real-world distance.  For example, if the distance between the two points on the map is 2 inches and the scale is 1:50,000, the real-world distance between the two points is 100,000 inches or about 1.57 miles.

  4. Take into account changes in elevation:  If the two points you are measuring are at different elevations, you will need to factor in the change in elevation when calculating the real-world distance.  To do this, you can use the contour lines on the map to estimate the vertical distance between the two points and add it to the horizontal distance you measured in step 3.

  By following these steps, you can measure the distance between two points on a topographic map and determine the real-world distance between them.

Do you have a question we didn’t answer? Don’t hesitate to contact us at 1-385-206-8700 or [email protected].
